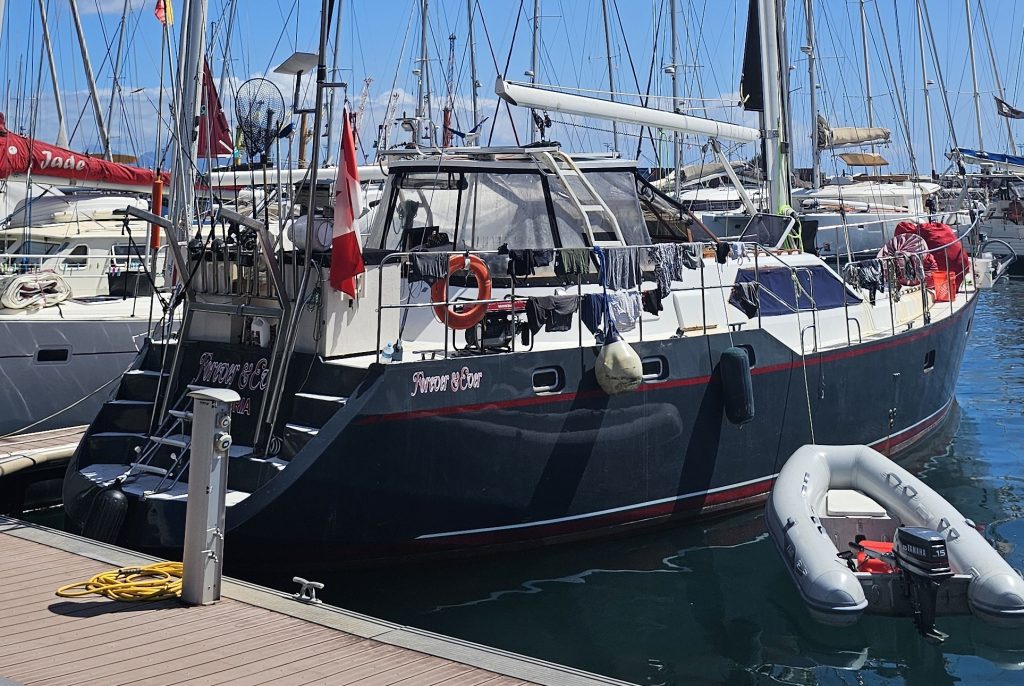

Roberts 52′ Pilothouse

$

250000

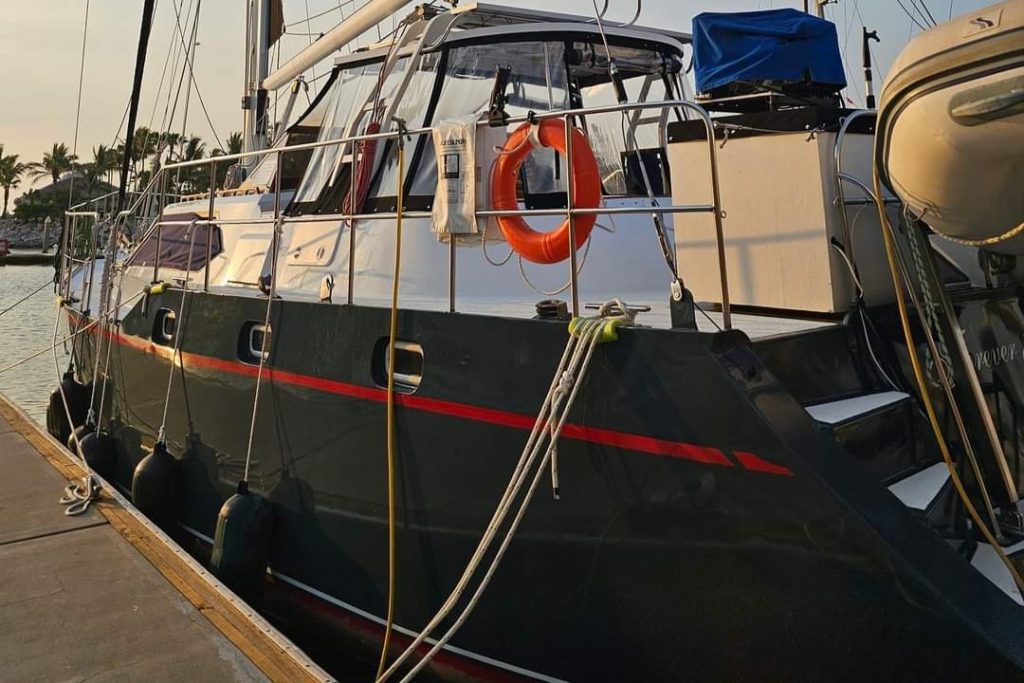

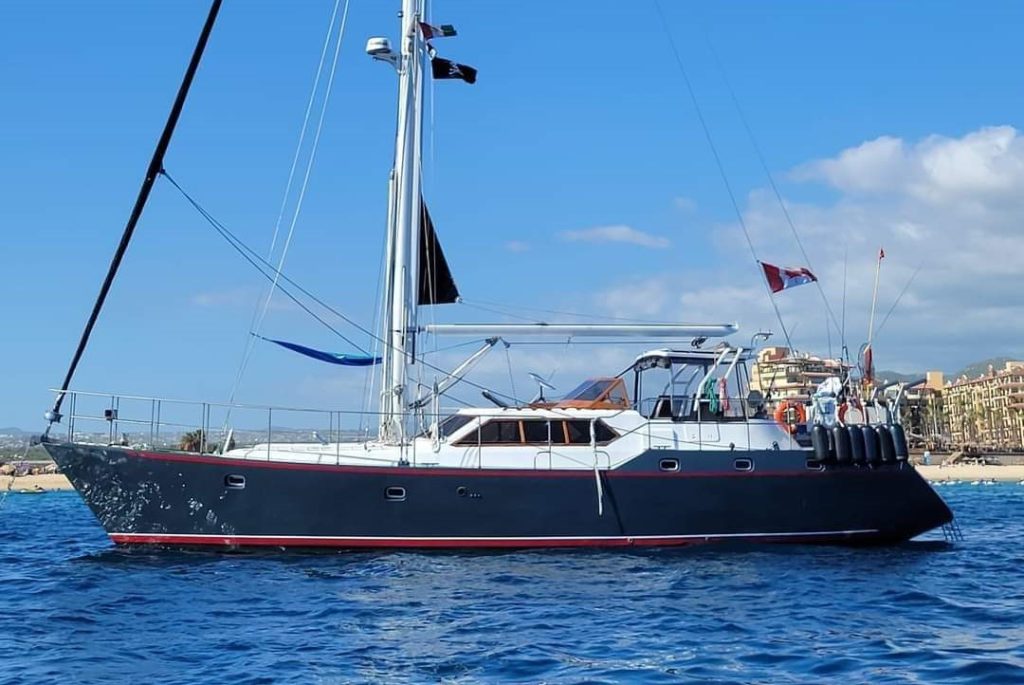

Designed by Bruce Roberts and constructed by Christensen Yachts in Steel, powered by 128hp diesel with a 40ton displacement she is designed to cruise in comfort and safety with the piece of mind of a steel hull. If you are looking for a large volume pilothouse yacht, she may be the answer to your search.

Sam Cannell

Broker

M. +64 (0) 21 522 761

Specifications

Vessel

Design Make

Roberts 52' Pilothouse

Builder

Kristen Yachts, Sannichton - Canada

Designed by

Bruce Roberts

Layout

Center Cockpit & Pilothouse

Price $

250000

Design Model

52' Pilothouse

Launched

1995

Sail or Power

Sail

OOM Number

3125

Construction

Length (loa)

52'

Beam

15'04"

Draft

7'

Hull Construction

Welded steel over 1/4" x 1-1/4" steel longitudinal stiffeners, 5/8" thick plate keel shoe with reported schedule 40 steel pipe at leading edge of keel, 1/4" thick hull plating at turn of the bilge, 3/16" topsides plating.

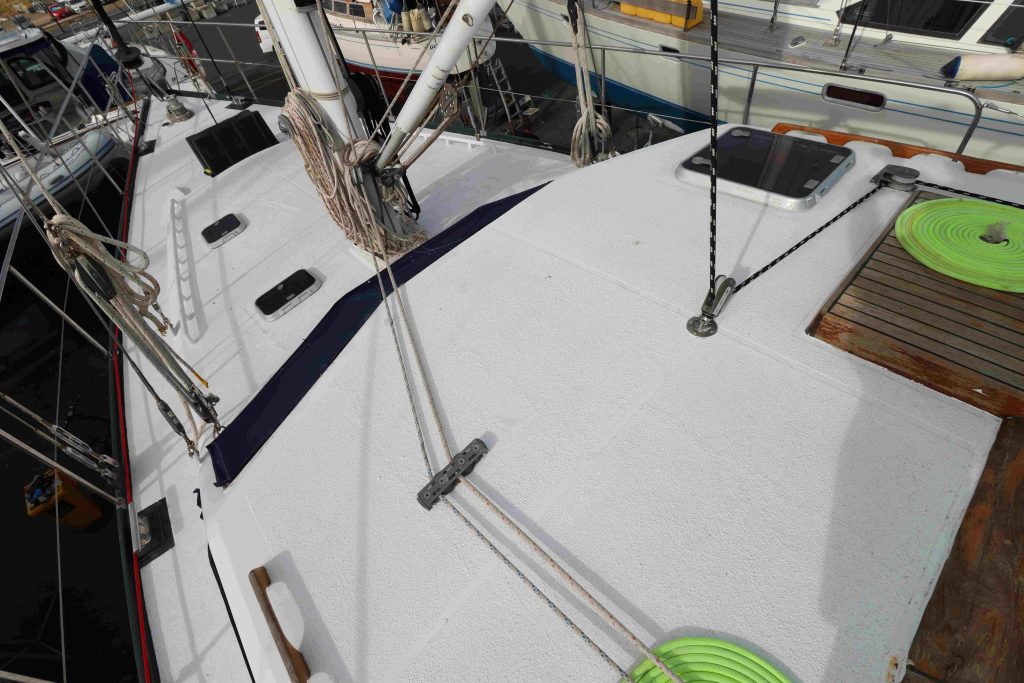

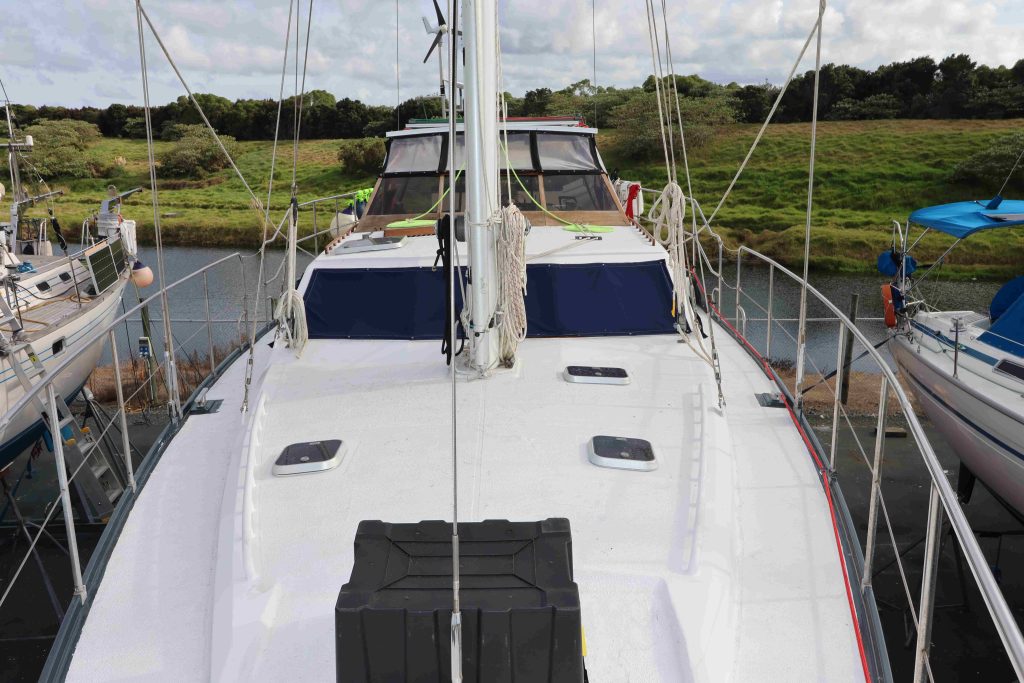

Deck Construction

14 Guage welded steel, integral toe rails, aluminum and wood-framed 3/8" thick hardened glass windows.

Keel Type

Cruising fin, 12,000Lbs steel encapsulated lead pour.

Mono/Multi hull

Monohull

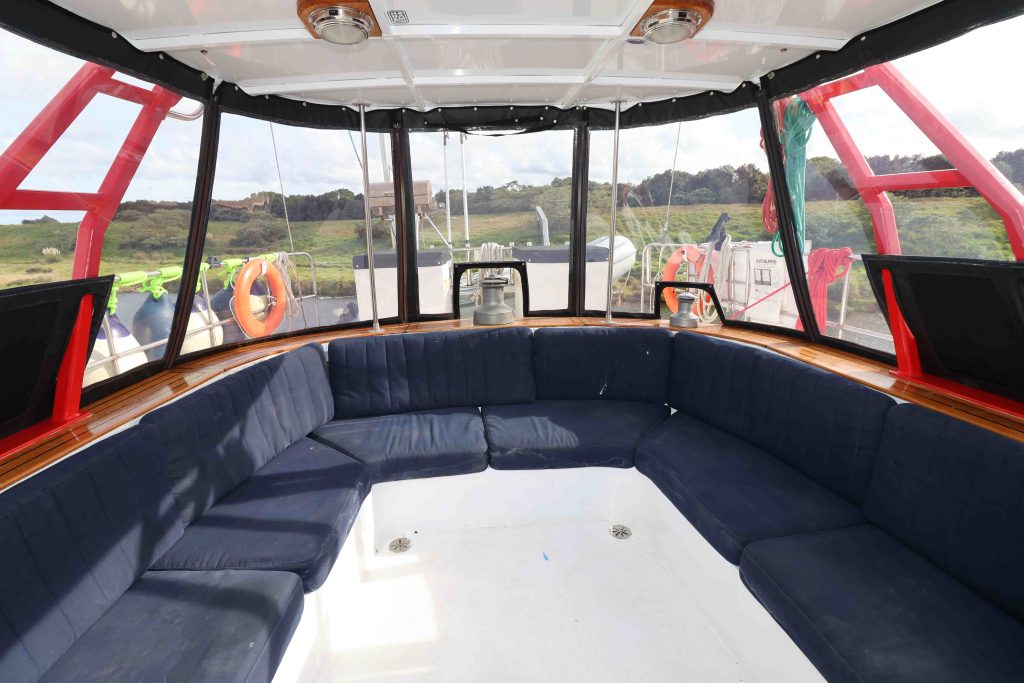

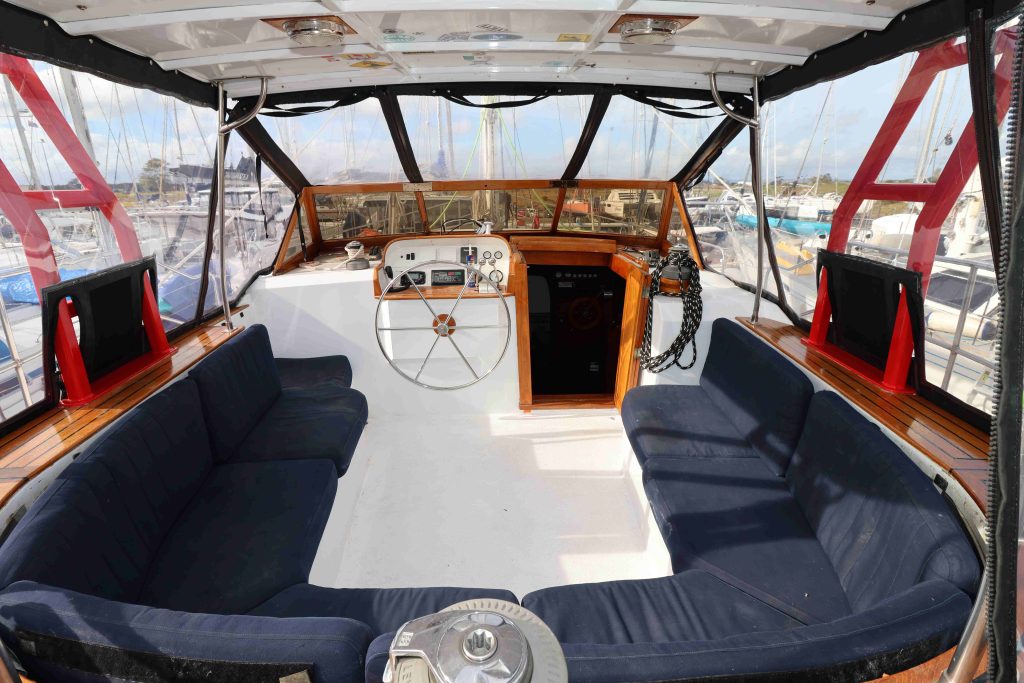

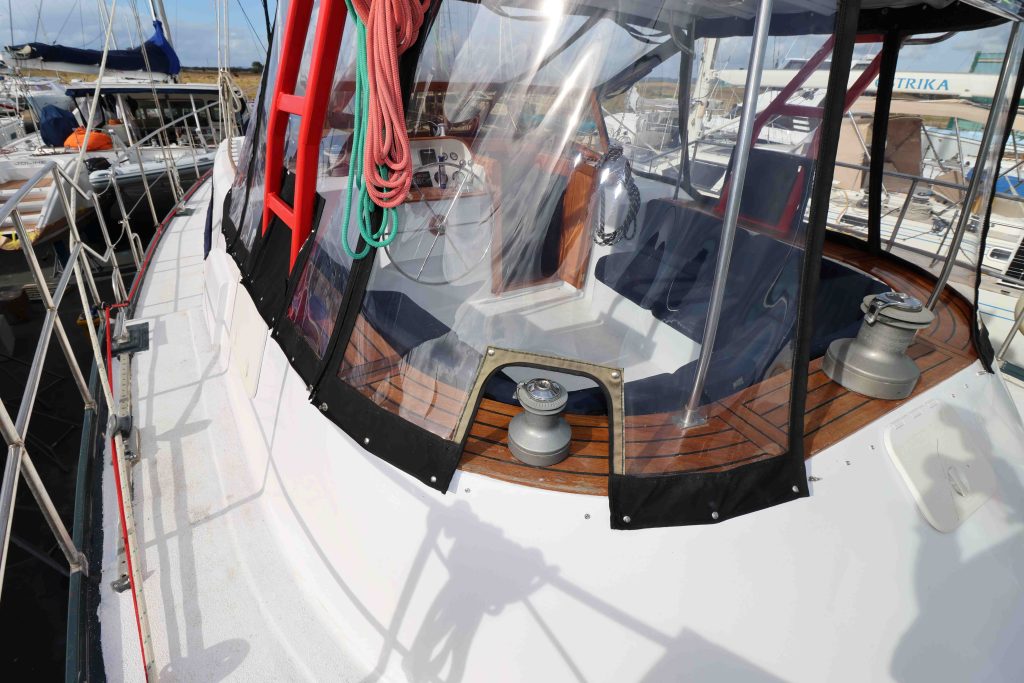

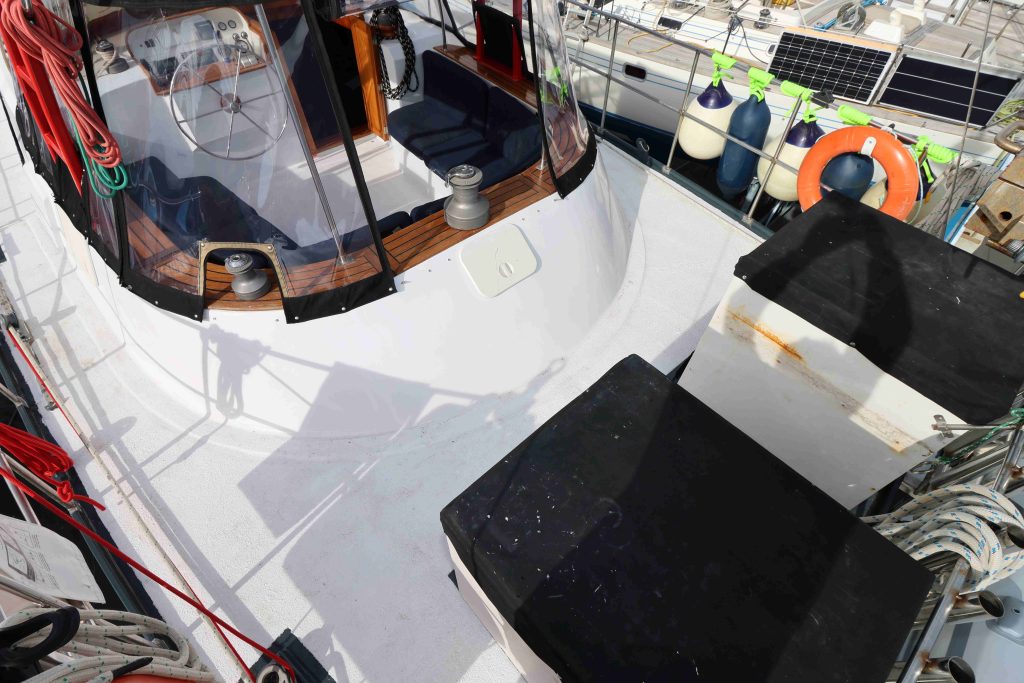

Cockpit layout

Center cockpit aft of pilothouse.

Displacement

40Ton

Engineering

Number of engines

1

HP

128hp

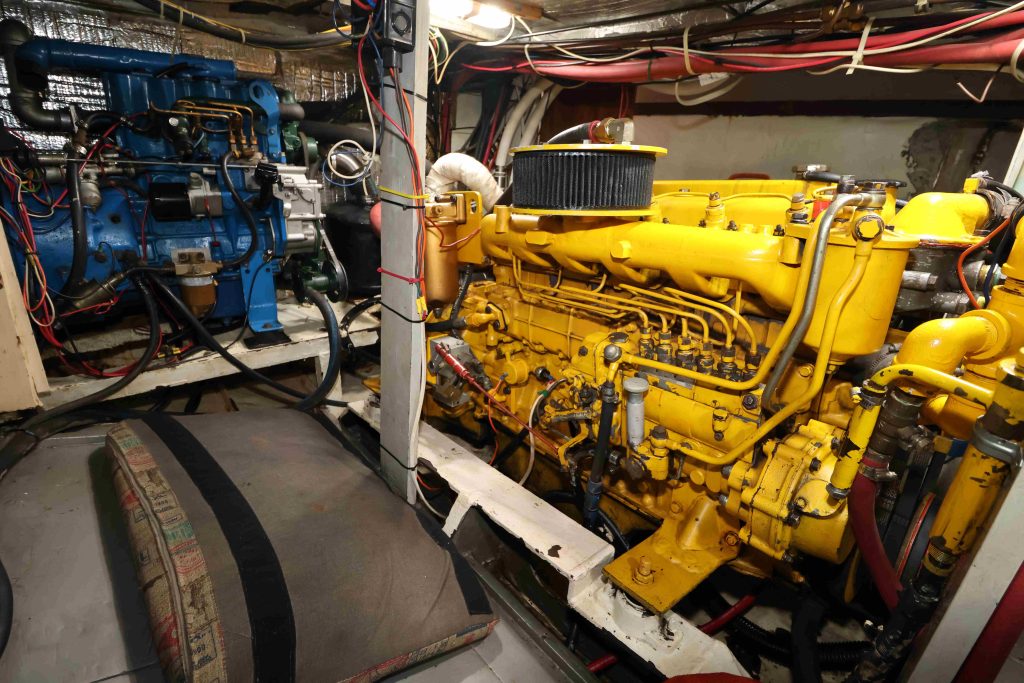

Engine Make

Isuzu

Engine Model

6BB1

Engine hours

5000 approx

Year of Engine

1995

Reconditioned

Top end rebuild - Dec 2024

Transmission

Hurth HSW630-H Hydraulic reverse reduction gear, 2.78:1

Drive system

1-3/4" dia Stainless steel drive shaft (new 2024)

Prop details

26" LH22" 3 blade bronze

Cruise speed

6.8kts

Efficiency at cruise

1.25GPH

Max speed

8.5kts

Cruise RPM

1800

Max RPM

2200

Bilge pump

1 x Rule 2000gph and 2 x 3700gph 12v submersible automatic

Generator

8.4kw Isuzu model 3KC1, 3 cylinder diesel genset.

Steering

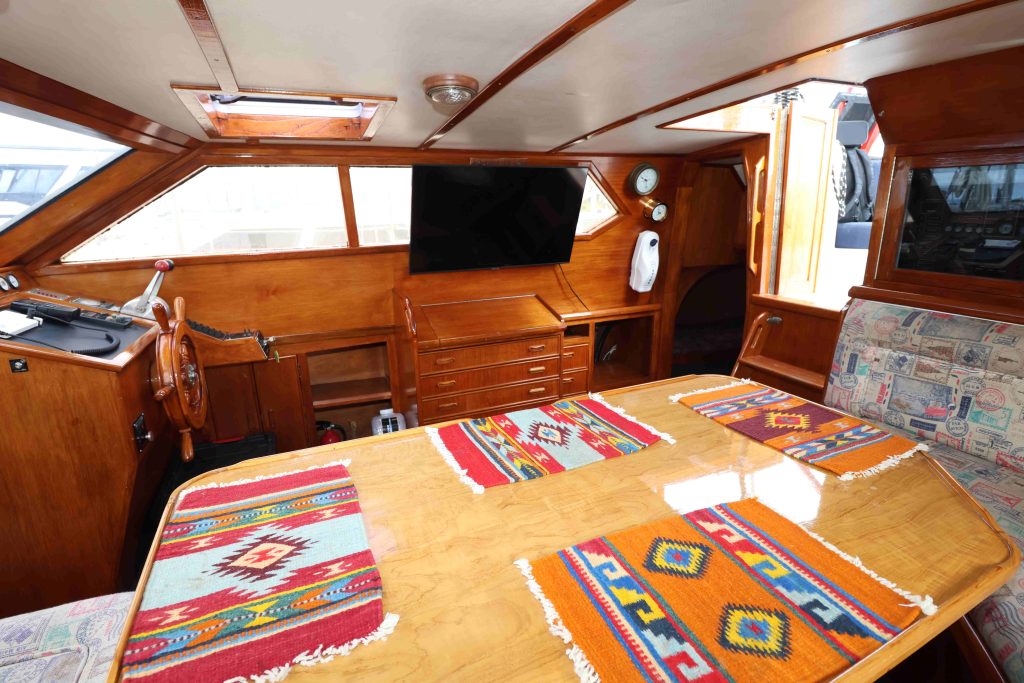

2 Station HYNAUTIC hydraulic steering.

Other

Emergency tiller

Tankage

Number of fuel tanks

2

Total Capacity

400Gallons

Fuel tank construction

Non-integral stainless steel wing tanks.

Number of water tanks

2

Total Capacity

400Gallons

Water tank construction

Stainless steel

Number of holding tanks

1

Total Capacity

30Gallon

Holding tank construction

Plastic

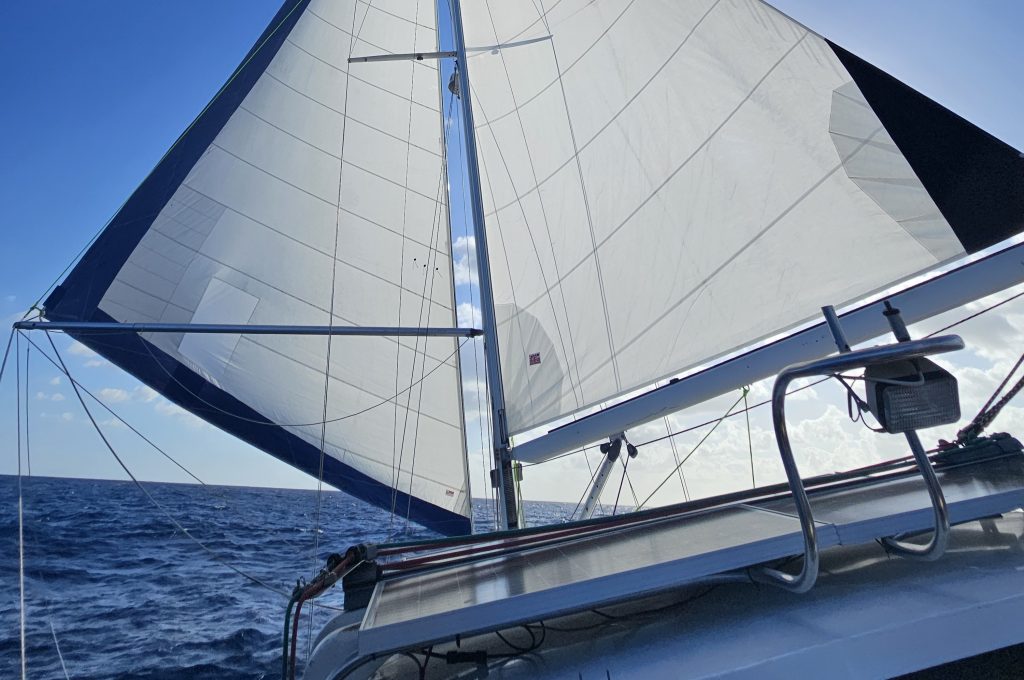

Sails and Rigging

Rig

  • Sloop

Spars

  • Alloy

Spar Age

1994

Rigging

  • Stainless Steel

Age of rigging

2024 Blackline Marine Canada. New rigging, turnbuckles, running rigging

Reefing

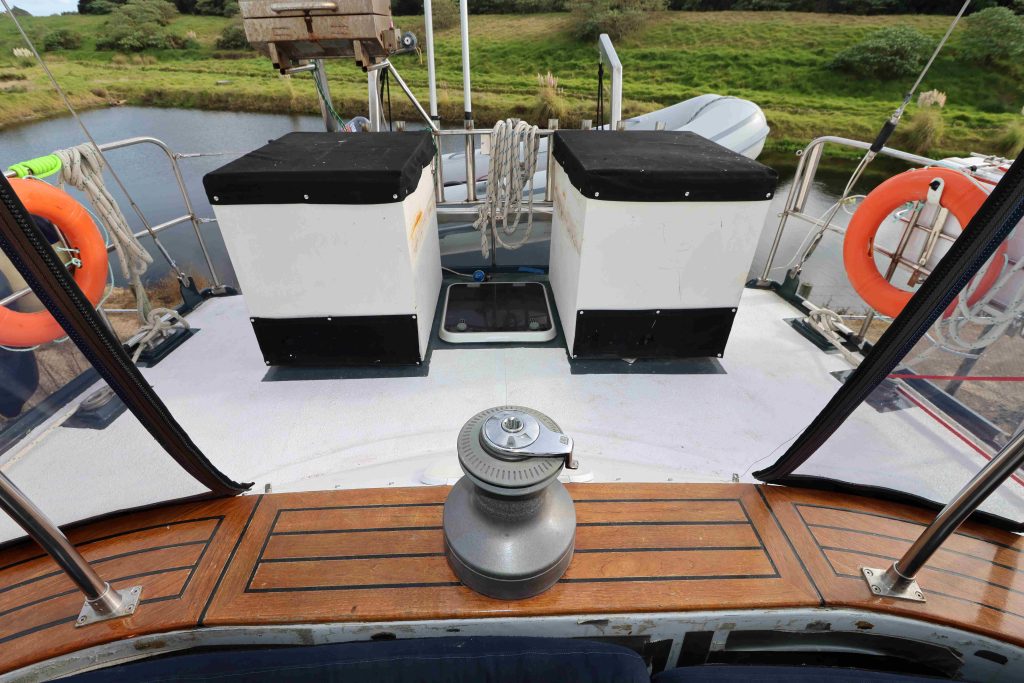

  • Furling headsail

Main sail

1

Genoa

120%

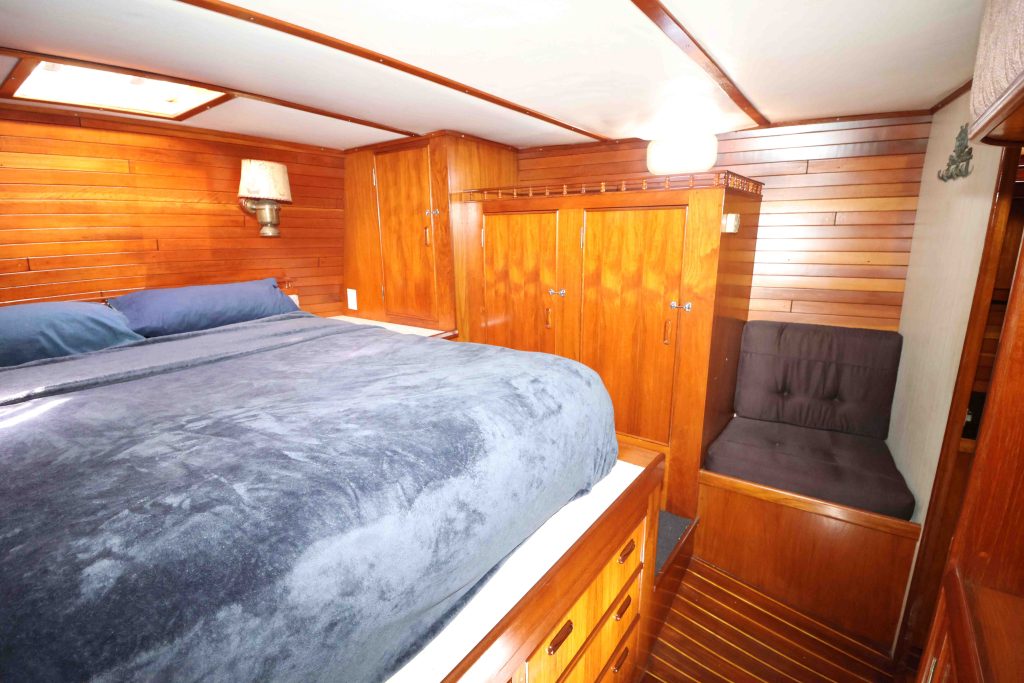

Accommodation, Head and Shower

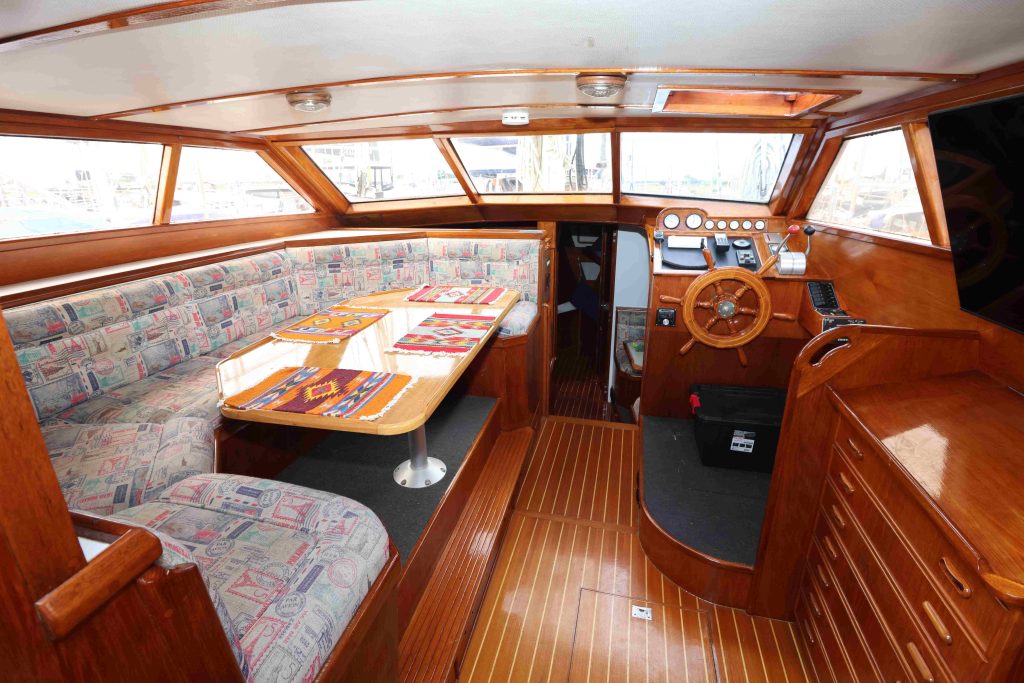

Layout

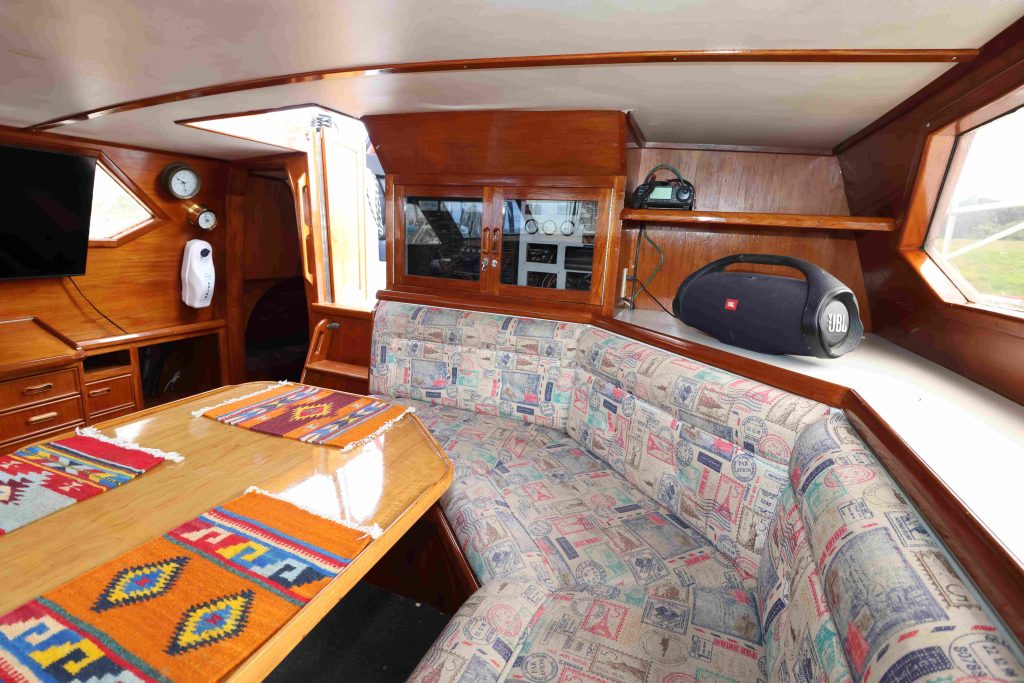

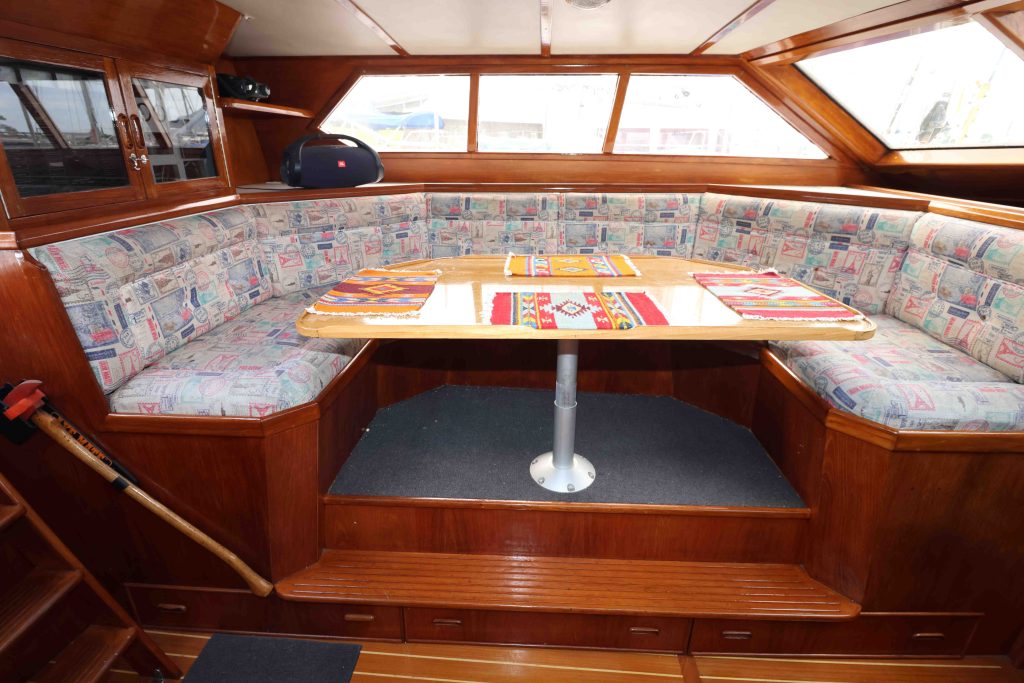

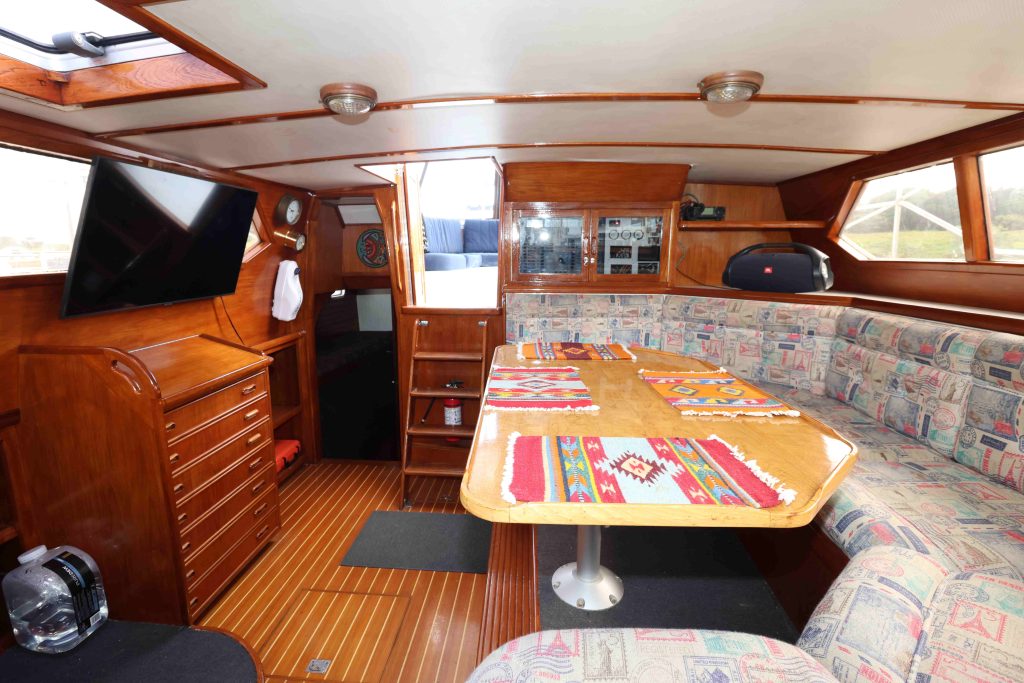

Pilothouse with aft cabin.

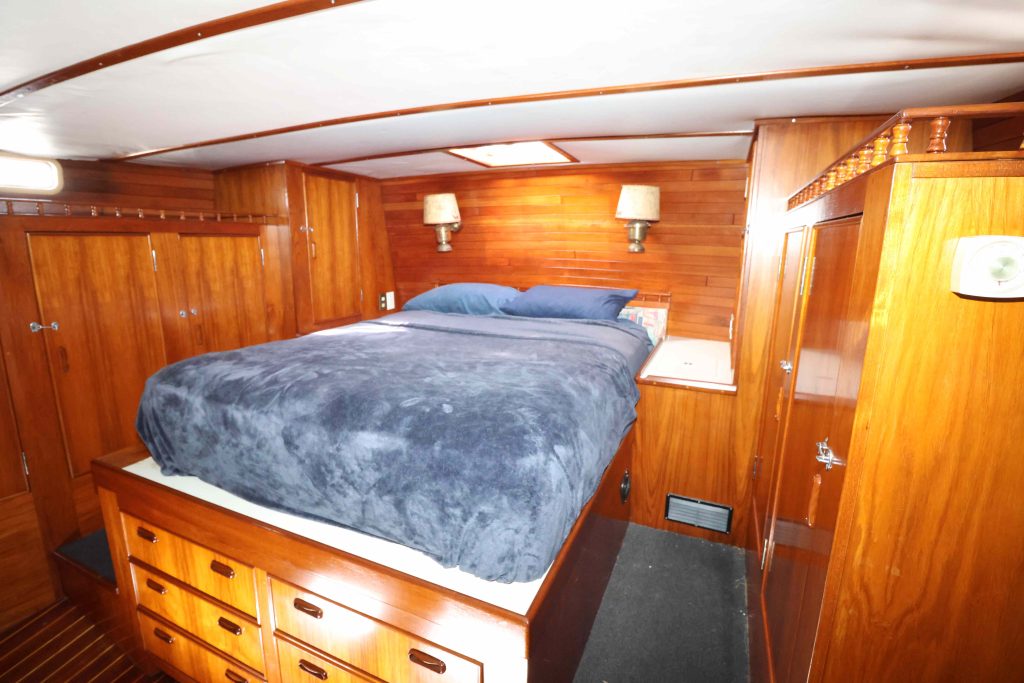

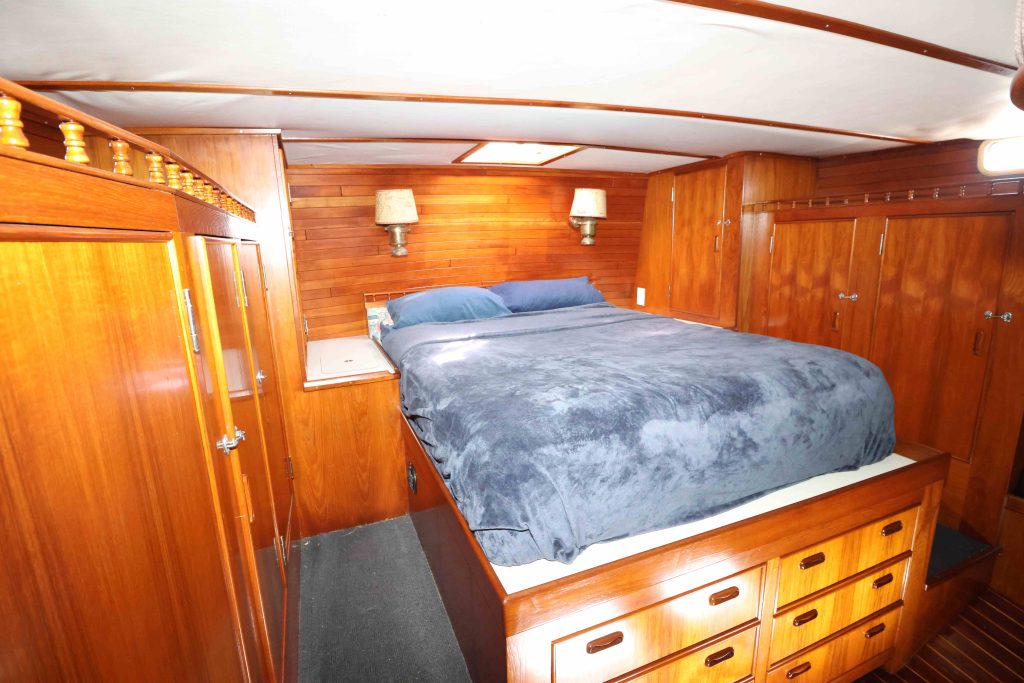

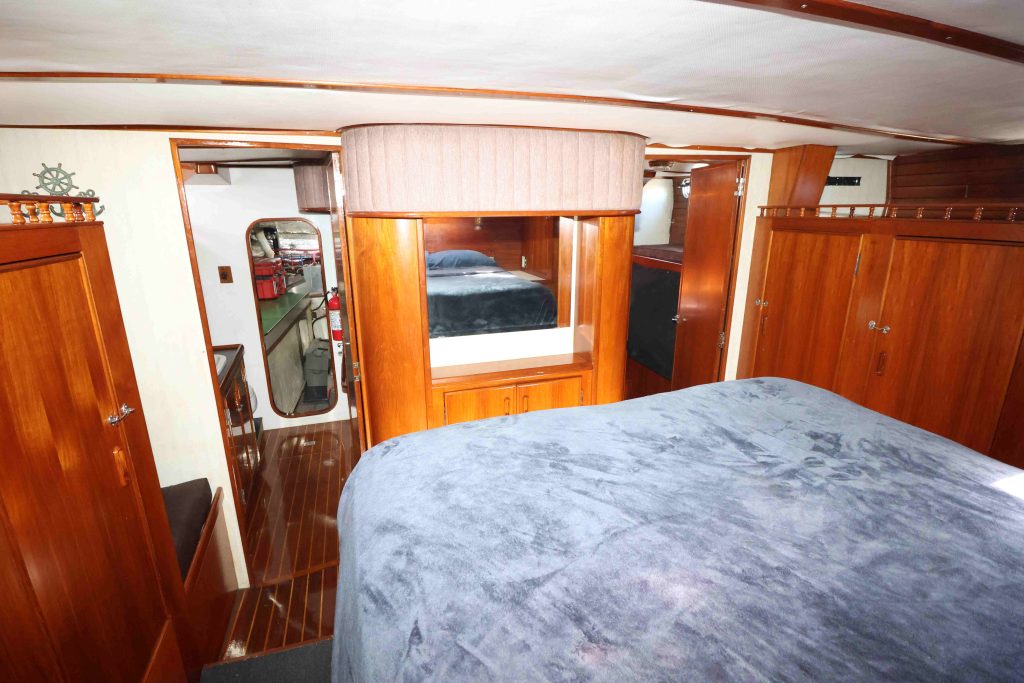

Cabins

2

Double berths

1

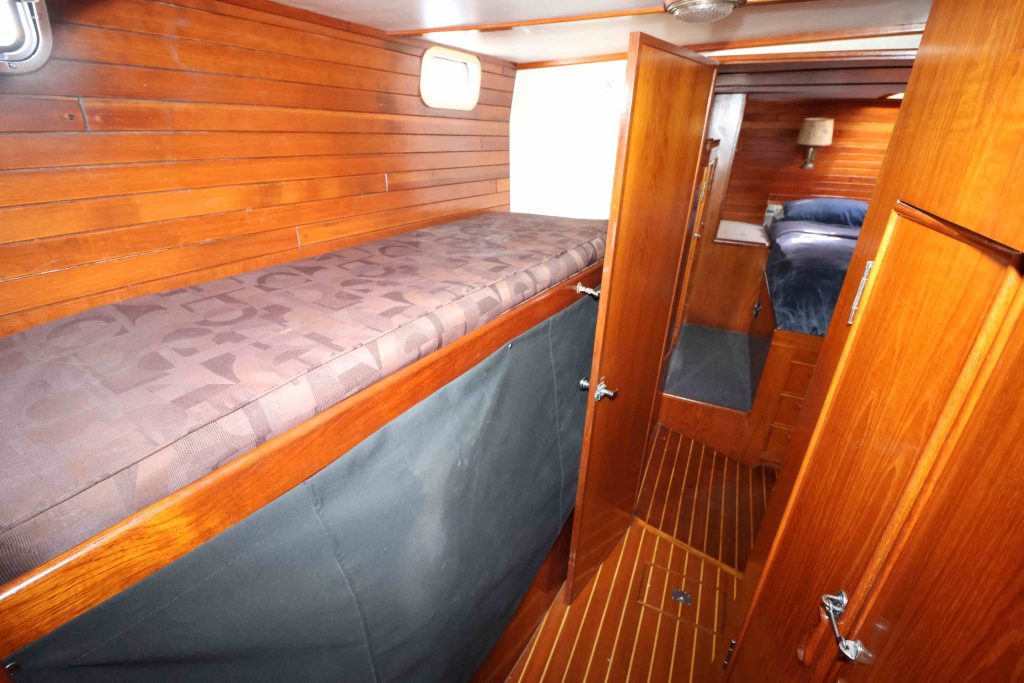

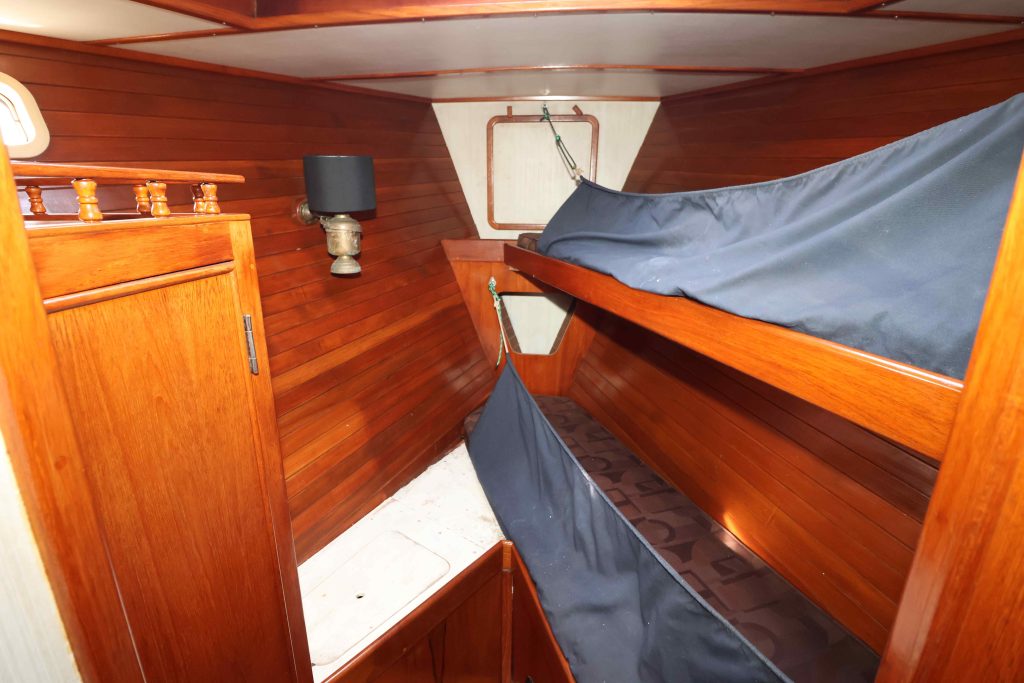

Single berths

4

Headroom

7ft

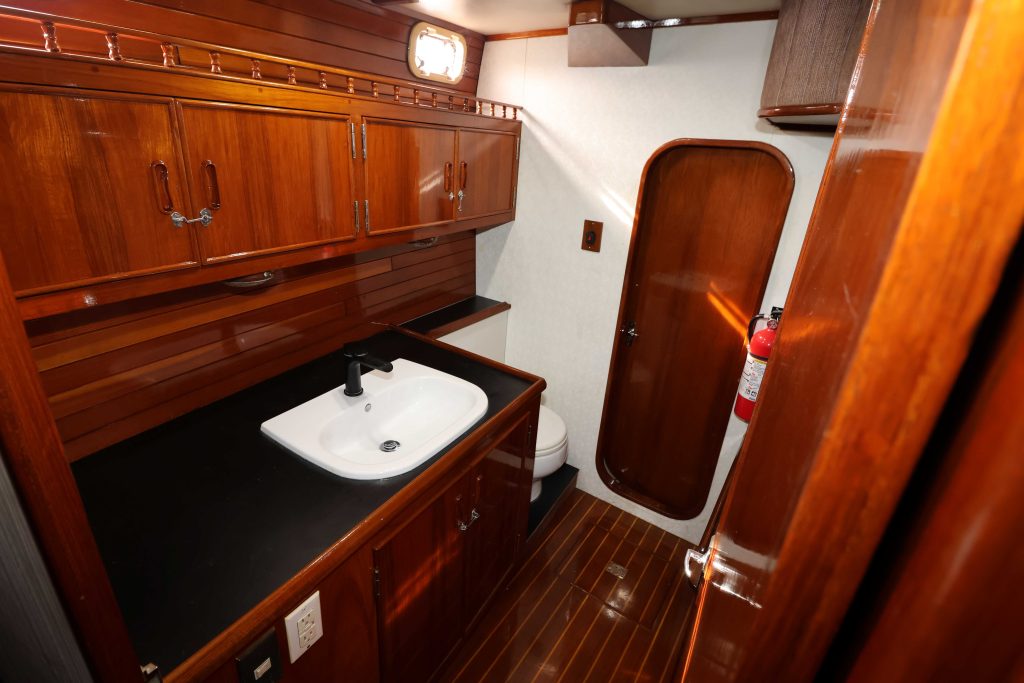

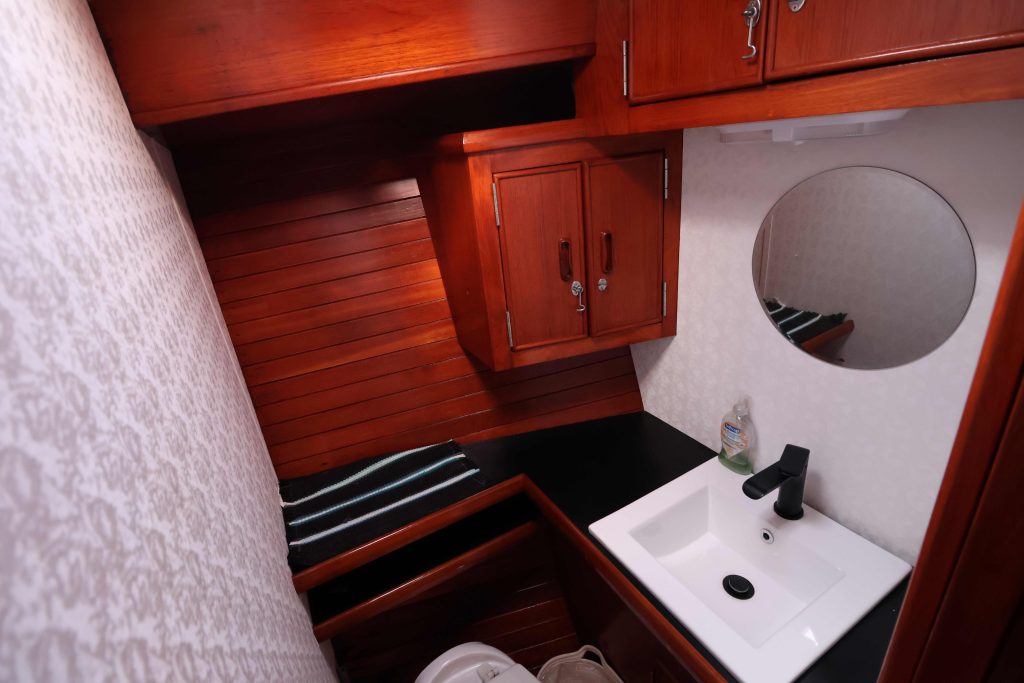

Number of heads

2

Type

Fresh water tecma toilet (self macerating)

Location

Fwd port & Aft port

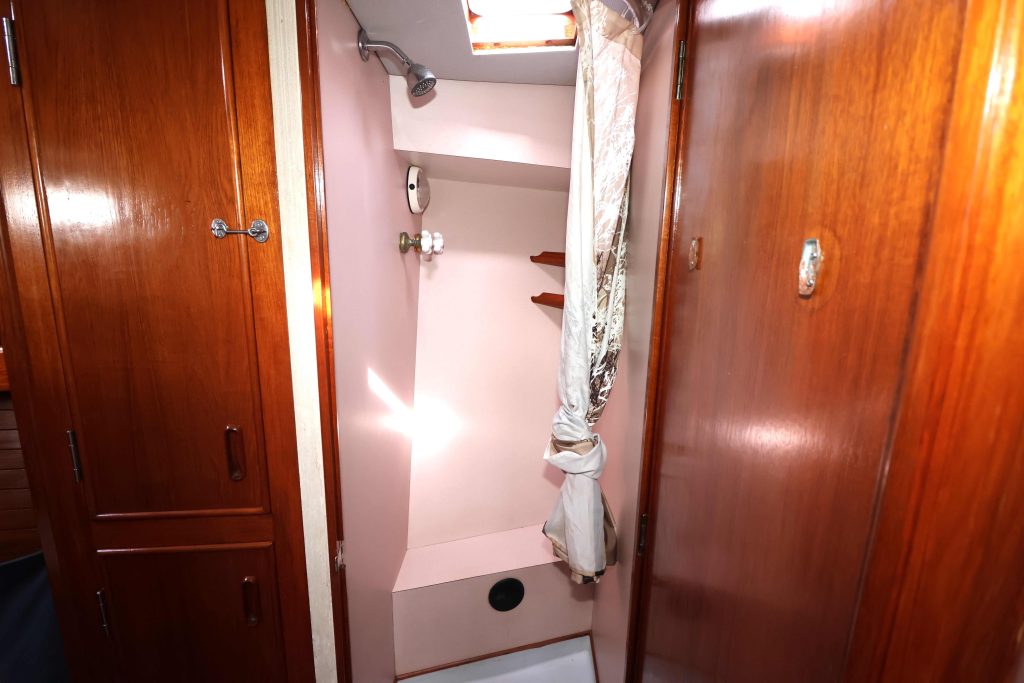

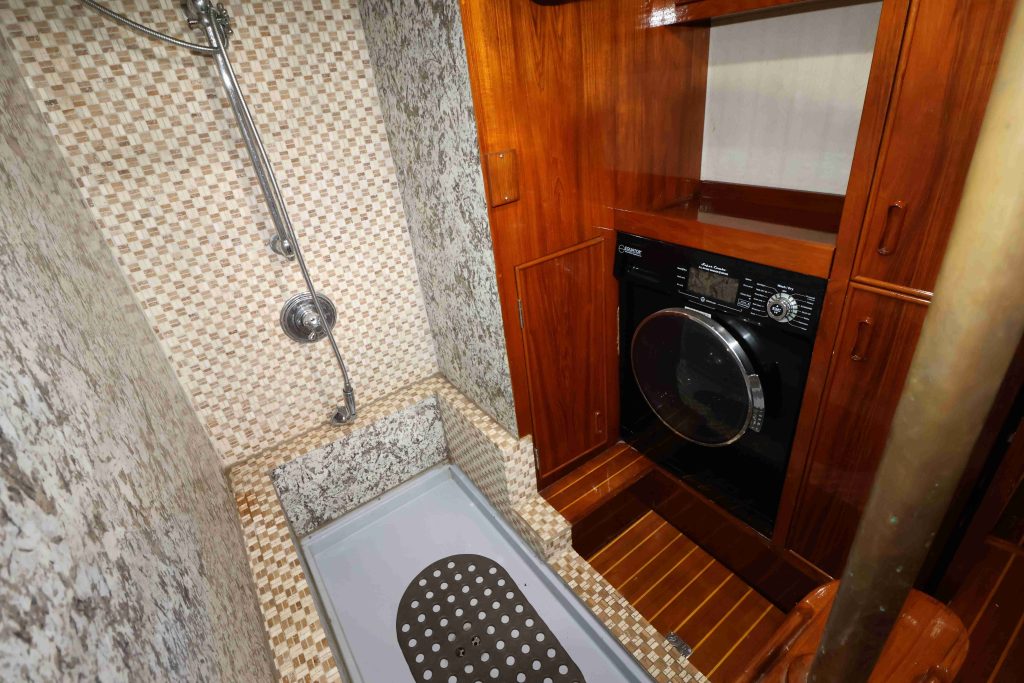

Number of showers

2

Water heater

Water heater-CHINOOK WATER HEATER (70 HRS) CURRENTLY NEEDS A GASKET ON THE HEAT EXCHANGER PART)

Cabin heater

Hurricane forced air (2024)

Equipment

Dinghy

A.B. rigid bottom inflatable dinghy. (2024)

Outboard

Yamaha enduro 2 stroke (2024)

Liferaft

New (2024) 6 person

Davit

Yes on a Swivel

Anchor/s

55kg Rocna & 60kg Mantus

Ground tackle

400 ft 3/8 BBB high strength (2020)

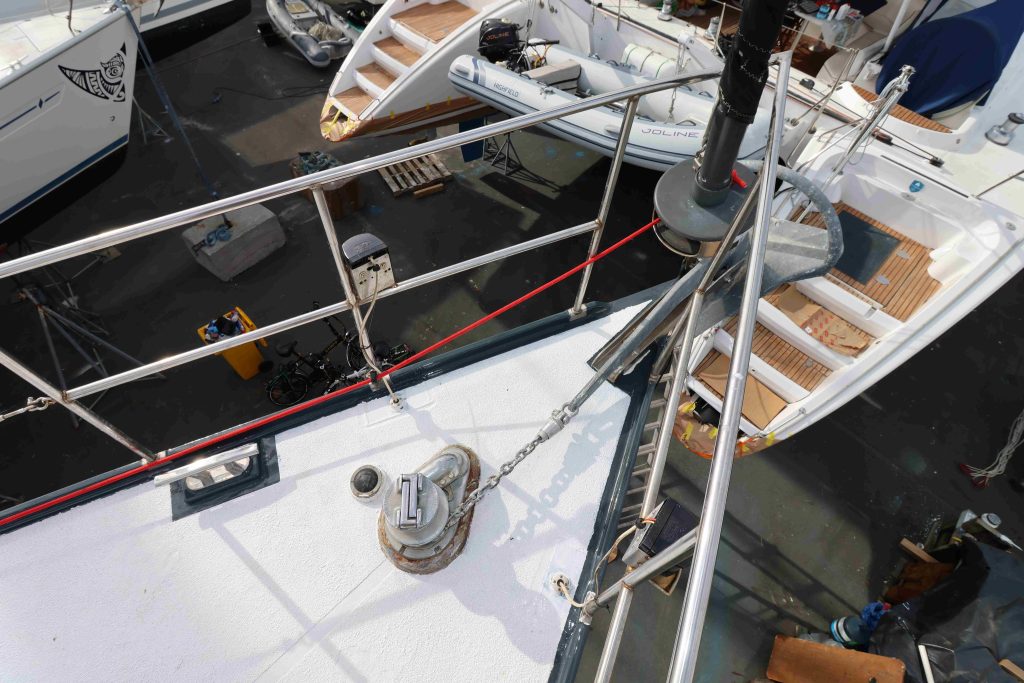

Capstain

Maxwell

Fenders

6

EPERB

2 x EPERB 2022 & 2024

Covers

2025

Spray dodger

Solid screen

Bimini

Alloy hard top

Electrical

AC power (v)

120v

Shore power

Yes 120v

Genset

3kc1 Isuzu 8.5 KHTZ

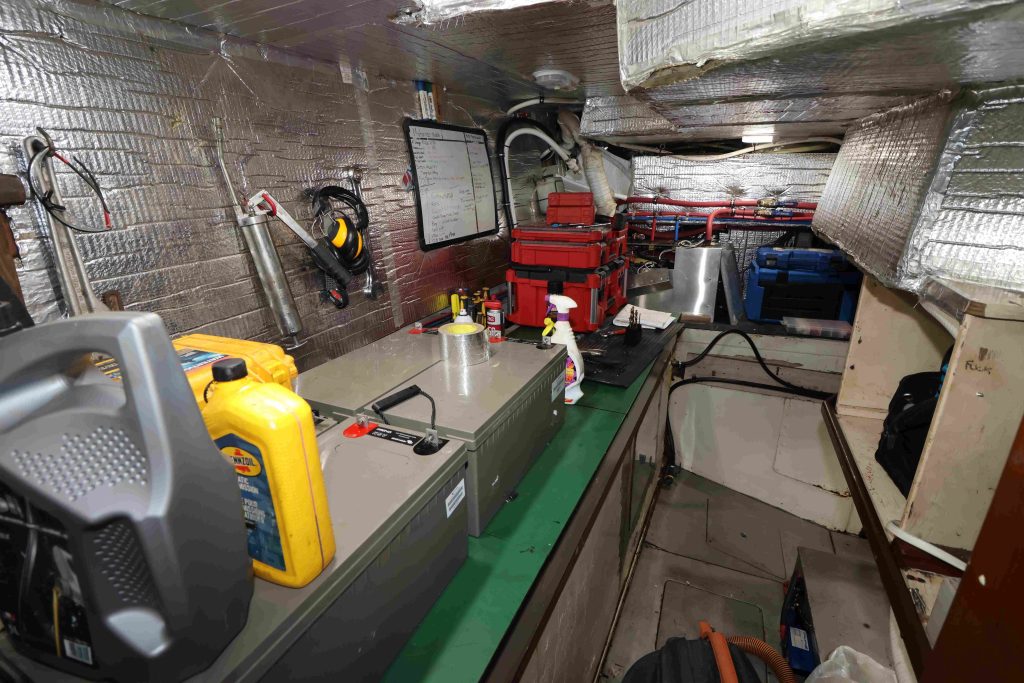

Number of batteries

13

Battery type

AGM

Total amp-hours

1200ah

Inverter

3000w (2024)

Battery charger

220a

VHF

B&G with AIS (2025)

SSB

Icom Tuner (2024), insulated backstay

Autopilot

Autohelm, Hydraulic pump (2024, new head unit (2024)

GPS

Zeus 2 (2023)

Chartplotter

Zeus 2(2023)

Depth sounder

Yes

Fish finder

Yes

Radar

Halo (2024)

Sat phone

Iridium Go

Wind inst

B&G wireless (2024)

Stereo system

JBL speaker

TV/DVD

32" TV & DVD

Sonar

Airmar front scanning sonar

AIS

Type B-X8000

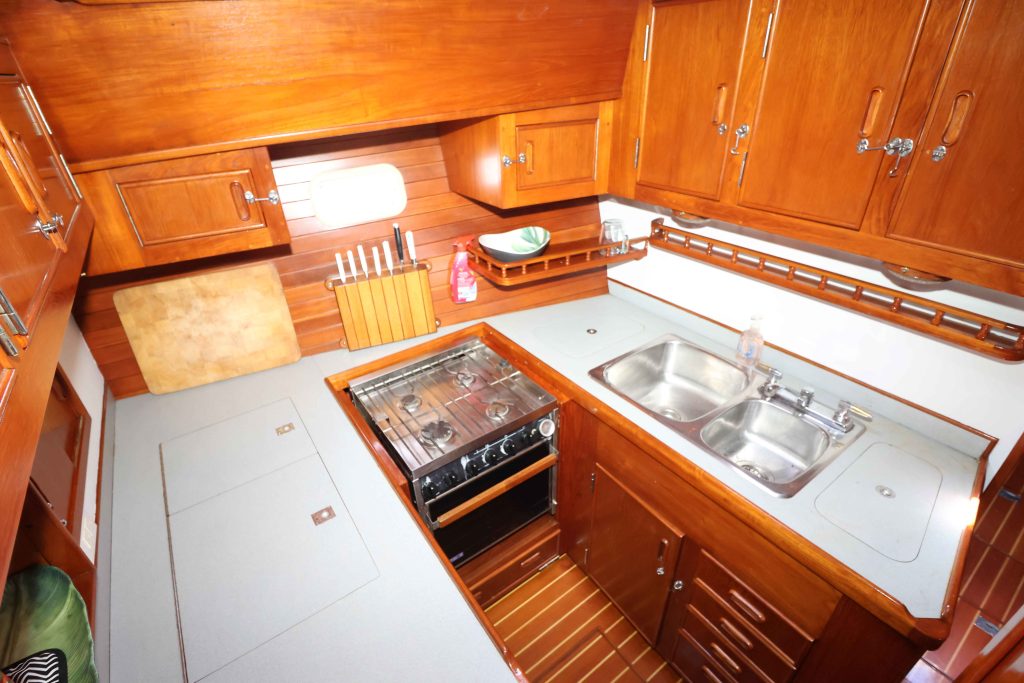

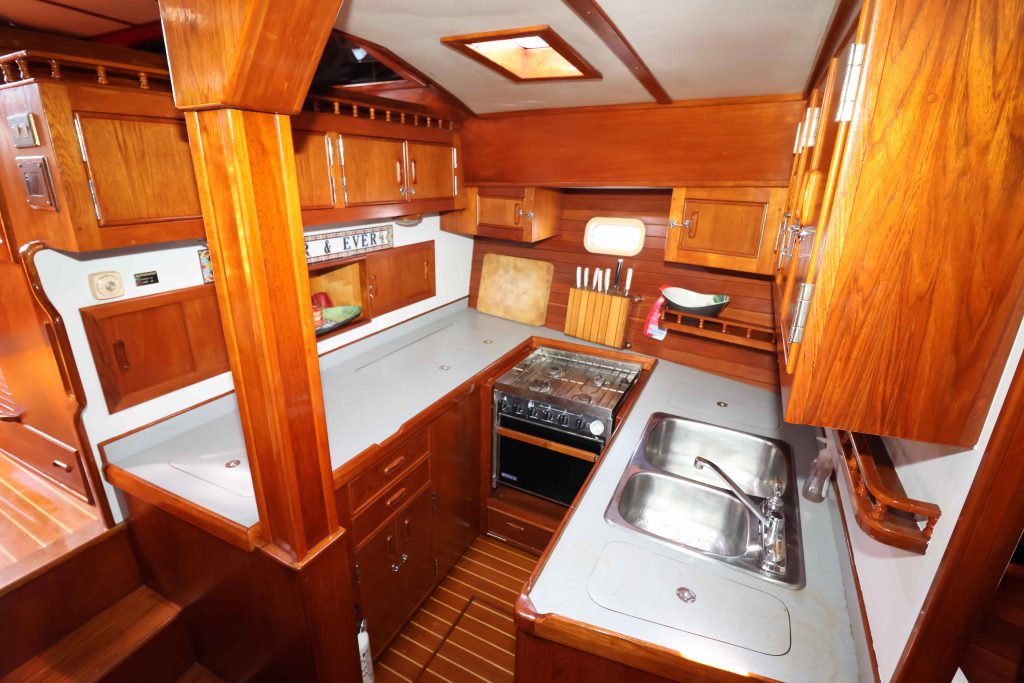

Galley

Oven

Yes

Hotplates

4

Gimbled

Yes

BBQ

Yes

LPG

Yes

Fridge

Nova Kool chest-type fridge/freezer combo cold plate system.

Pressure/manual water

High pressure water pump (2024)

Hot water system

Runs off Hurricane system

Galley equipment

Some

Other

Open Ocean Marine Ltd is acting as an agent for our vendor, we offer this vessel for sale in good faith but cannot guarantee the accuracy of this information. Open Ocean Marine Ltd suggests that purchasers confirm all details with their surveyor or inspector prior to purchase.
